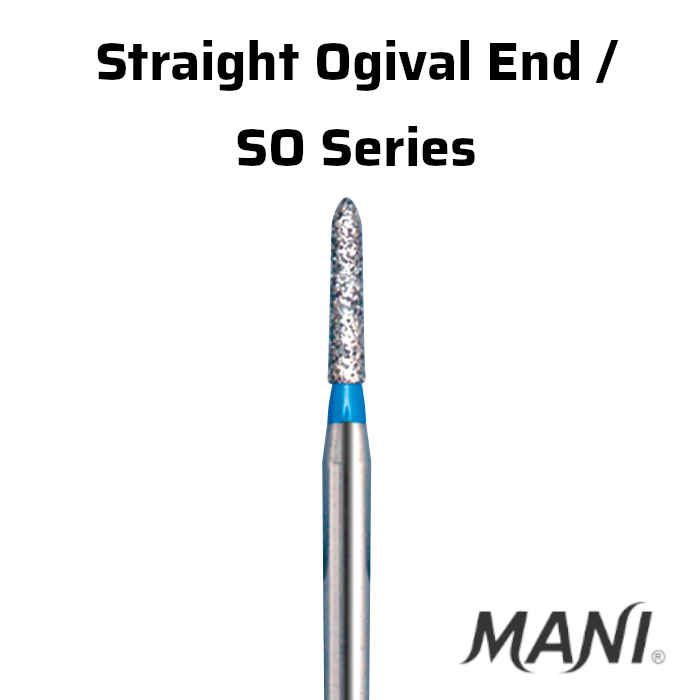

Mani Diamond Burs SO-23

Product Description

• 1.To prevent infection, sterilize the product by autoclave and make sure sterilization is completed before using.
• 2. Use with “feather touch” and keep the allowable engine speed strictly as over speed could cause fractures and injury.
• 3. Follow the instructions of a handpiece manufacturer strictly and insert the shank all the way to avoid its half-way chucking.
• 4. The handpiece should be used in accordance with its instructions.
• 5. Choose the most appropriate type for each case and follow the general method.
• 6. Before using, run the instruments outside of oral cavity to make sure that there is no distortion.
• 7. Before using, make sure the instruments outside of oral cavity that there are no deformations, scratches, cracks and tarnishes.
• 8. If a head of this product is thin, long or large, there are possibilities for breaking or twisting. Because of this, be sure to
• avoid using unreasonable angle and excessive pressure.
• 9. Use with water spray system.
• 10. Wear safety glasses to protect your eyes from damage. Also, wear a dust protective mask to prevent inhaling dust.
• 11. Wear rubber dam etc. to avoid accidental ingestion and falling.
• 12. Do not use this instrument for any purposes except for listed applications above.
• 13. Only for use by dentists.
• 14. This product should be treated as medical waste when disposed.
• 15. Dispose this product if damaged or contaminated.
• 16. After using, wash it with medical cleaning agent and brush, then wash away foreign substances such as adherent body fluids and
• body tissues.
• 17. Set the product to a stand when cleaned by ultrasonic cleaner to avoid working part deterioration.
• 18. Use this instrument with great care to avoid puncturing fingers because of its possession of sharp-edged part.
• 19. This product has possibility that be corrosive if sunk into NAOCL, EDTA and etc. for a long time.
• 20. Handle this product with great care because this product has possibility of sparking when cutting all ceramic restorative
• materials such as Zirconium.

• 1. Use a dental handpiece which can hold the shank precisely.
• (Diameter of Friction grip shank: φ1.6mm)
• (Diameter of Contra Angle shank :φ2.35mm)
• 2. Use a handpiece which could control at allowable engine speed.
• 3. Use a handpiece with water spray system.

• 1. This product is used by connecting to dental handpiece and rotates to grind hard materials and tissues etc..
• It is the dental diamond burs with stainless steel shank and non-sterile instrument.
• 2. Main materials
• a) Metal base :Stainless steel (including nickel and chromium)
• b) Working part: Fine diamond crystals attached to metal base(including nickel and chromium)
• c) Shank : Stainless steel (including nickel and chromium)
